W1-1L
Left Turn
30X30, 36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W1-1R
Right Turn
30X30, 36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W1-1AL
Left Turn W/ Speed Limit
36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W1-1AR
Right Turn Speed Limit
36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W1-2L
Left Curve
30X30, 36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W1-2R
Right Curve
30X30, 36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
|
|
|
|
|
|
|

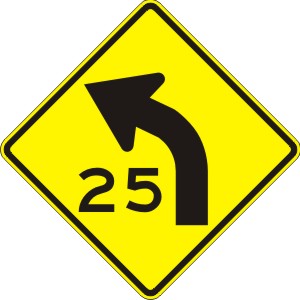

W1-2AL
Left Curve Speed Limit
36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W1-2AR
Right Curve
36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W1-3L
Reverse Turn
30X30,36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W1-3R
Reverse Turn
30X30, 36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W1-4L.
Reverse Curve
30X30, 36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W1-4R.
Reverse Curve
30X30, 36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
|
|
|
|
|
|
|
W1-5L
Winding Road
30X30, 36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W1-5R
Winding Road
30X30, 36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W1-6
Large Arrow (1-direction
48X24, 60X30
New 2009 MUTCD
Standard Sizes
|
W1-7
Large Arrow (2-dir.)
48X24, 60X30
New 2009 MUTCD
Standard Sizes
|
W1-8
Chevron
18X24, 30X36, 36X48
New 2009 MUTCD
Standard Sizes
|

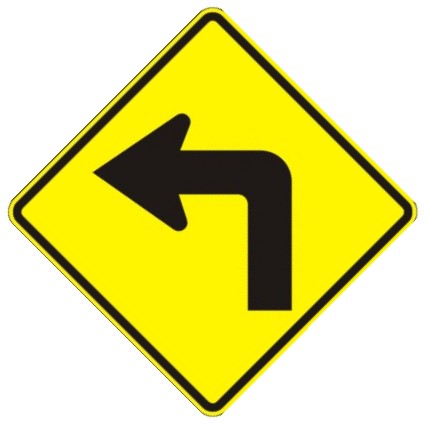

W1-10L
36X36,48X48
New 2009 MUTCD
Standard Sizes
|
|
|
|
|
|
|
|
W1-10R
36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W1-11
Hairpin Curve
30X30, 36X36
48X48
|
W1-13
Truck Rollover
36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W1-15
270 Degree Loop
30x30, 36x36
48X48
|
W2-1
Cross Road
24X24, 30X30
36X36, 48X48
|
W2-2
Side Road
(perpendicular)
24X24, 30X30
36X36, 48X48
|
|
|
|
|
|
|
|
W2-3
Side Road (oblique)
24X24, 30X30
36X36, 48X48
|
W2-4
T Symbol
24X24, 30X30
36X36, 48X48
|
W2-5
Y Symbol
24X24, 30X30
36X36, 48X48
|

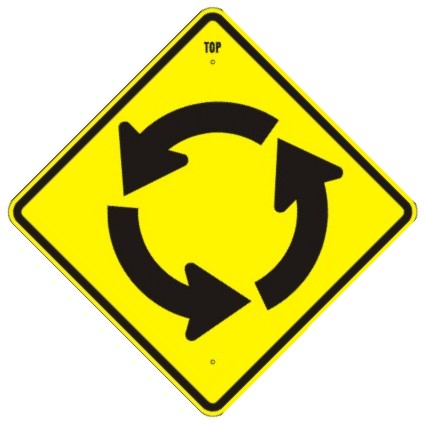

W2-6
Circular Intersection
24X24, 30X30
36X36, 48X48
|
W3-1
STOP AHEAD SYM
30X30, 48X48
New 2009 MUTCD
Standard Sizes
|
W3-1a
STOP AHEAD
30X30, 48X48
|
|
|
|
|
|
|
|
W3-1P
STOP AHEAD
24X18
|
W3-2
YIELD AHEAD
30X30, 48X48
New 2009 MUTCD
Standard Sizes
|
W3-2a
Yield Ahead
30x30, 48X48
|
W3-2P
YIELD AHEAD
24X18
|
W3-3
Signal Ahead Symbol
30x30, 48X48
New 2009 MUTCD
Standard Sizes
|
W3-3a
Signal Ahead
30X30, 48X48
|
|
|
|
|
|
|
|
W3-3P
SIGNAL AHEAD
24X18
|
W3-5
Speed Reduction
36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W3-5a
XX Miles Speed Zone
Ahead
36X36, 48X48
|
W3-6
Draw Bridge Ahead
36X36, 48X48
New 2009 MUTCD
Standard Sizes
|

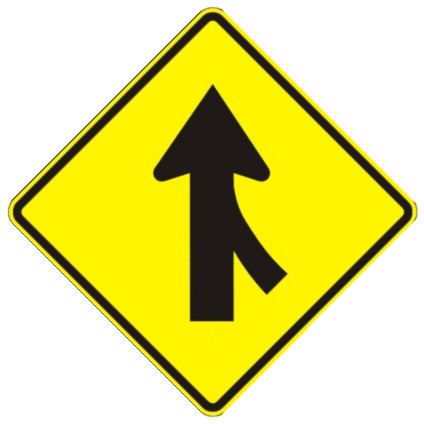

W4-1L
Merge
30X30, 36X36
48X48
|
W4-1R
Merge
30X30, 36X36
48X48
|
|
|
|
|
|
|
|
W4-2
Pavement Width
Transition
30X30, 36X36
48X48
|
W4-2L
Lane Ends
30X30, 36X36
48X48
|
W4-2R
Lane Ends 2005
30X30, 36X36
48X48
|
W4-3L
Added Lane
30X30, 36X36
48X48
|
W4-3R
Added Lane
30X30, 36X36
48X48
|

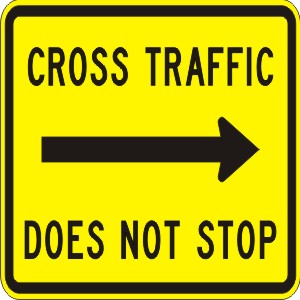

W4-4p
CROSS TRAFFIC
DOES NOT
STOP(Plaque)
24X12, 36X18
|
|
|
|
|
|
|
|
W4-5
Entering Roadway
Merge
36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W4-6
Entering Roadway
Added Lane
36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W5-1
ROAD NARROWS
30X30, 36X36
48X48
|
W5-1P
ROAD NARROWS
24X18
|
W5-2
Narrow Bridge
30X30, 36x36
48X48
|
W5-2P
NARROW BRIDGE
24X18
|
|
|
|
|
|
|
|
W5-3
One Lane Bridge
30X30, 36X36
48X48
|
W5-4
Ramp Narrows
30X30, 36X36
48X48
|
W5-4a
Bikeway Narrows
30X30, 36X36
48X48
|
W6-1
Divided Highway
(Road)
36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W6-1a
Divided Highway
36X36, 48X48
|
W6-1b
Divided Road
36X36, 48X48
|
|
|
|
|
|
|
|
W6-1P
DIVIDED HIGHWAY
24X18
|
W6-2
Divided Highway
(Road) Ends
36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W6-2a
Divided Highway Ends
36X36, 48X48
|
W6-2b
Divided Highway Ends
36X36, 48X48
|
W6-2P
DIVIDED HIGHWAY
ENDS
24X18
|
W6-3
Two Way Traffic Symbol
36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
|
|
|
|
|
|
|
W6-3P
TWO WAY TRAFFIC
24X18
|
W7-1
Hill Symbol
24X24, 30X30
36X36, 48X48
|
W7-1
Hill
30x30, 36X36
48X48
|
W7-1a
Hill Symbol
(Percent Grade)
24X24, 30X30
36X36, 48X48
|
W7-2P
USE LOW GEAR
24X18
|
W7-2a
Use 2ND Gear
24X18
|
|
|
|
|
|
|
|
W7-2bP
TRUCKS USE
LOWER GEAR
24X18
|
W7-3P
Percent GRADE
24X18
|
W7-3aP
NEXT 7 MILES
24X18
|
W7-3bP
Percent GRADE 7
MILES
24X18
|
W7-4
RUNAWAY TRUCK
RAMP 1 MILE
78X48
|
W7-5
Hill Bicycle Symbol
24X24, 30X30
36X36, 48X48
|
|
|
|
|
|
|
|
W7-5a
HILL
12X9
|
W7-6
Hill Blocks View
30X30, 36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W8-1
BUMP
24X24, 30X30
36X36, 48X48
|
W8-2
DIP
24X24, 30X30
36X36, 48X48
|
W8-3
PAVEMENT ENDS
30X30, 36X36
48X48
|
W8-3a
Pavement Ends Symbol
30X30, 36X36
48X48
|
|
|
|
|
|
|
|
W8-3P
PAVEMENT ENDS
24X18
|
W8-4
SOFT SHOULDER
24X24, 36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W8-5
Slippery When Wet
Symbol
24X24, 30X30
36X36, 48X48
|
W8-6
TRUCK CROSSING
24X24, 36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W8-7
LOOSE GRAVEL
24X24, 36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W8-8
ROUGH ROAD
24X24, 36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
|
|
|
|
|
|
|
W8-9
LOW SHOULDER
24X24, 36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W8-9a
Shoulder Drop-Off
Symbol
24X24, 30X30
36X36, 48X48
|
W8-9a
Shoulder Drop Off
24X24, 36X36, 48X48
|
W8-10
Bicycle Slippery
When Wet Symbol
24x24, 30X30
36X36, 48X48
|
W8-10P
SLIPPERY WHEN WET
24X18
|
W8-11
Uneven Lanes
36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
|
|
|
|
|
|
|
W8-13
Bridge Ices Before Road
24X24, 36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W9-1L
LEFT LANE ENDS
30X30, 36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W9-1R
RIGHT LANE ENDS
30X30, 36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W9-2L
LANE ENDS
MERGE LEFT
30X30, 36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W9-2R
LANE ENDS
MERGE RIGHT
30X30, 36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W9-11
SLOW CHILDREN
with Symbol
18X24
|
|
|
|
|
|
|
|
W9-12
SLOW CHILDREN AT
PLAY
with Symbol
18X24
|
W10-1
Railroad Crossing
36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W10-1aP
EXEMPT
24X12
|
W10-2L

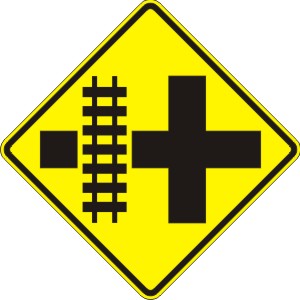

Railroad Advance
36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W10-2R
Railroad Advance
36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W10-3L
Railroad Advance
36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
|
|
|
|
|
|
|
W10-3R
Railroad Advance
36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W10-4L
Railroad Advance
36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W10-4R
Railroad Advance
36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W10-5
Rail-highway Low
Ground ClearanceSYM
36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W10-8
Trains May Exceed
80 MPH
36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W10-9
No Train Horn
36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
|
|
|
|
|
|
|
W10-10
No Signal
24X18
|
W10-11
Storage Space Symbol
36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W10-11a
XX Between Tracks
& Highway
30X36
|
W10-11b
XX Feet Between
Highway & Tracks
Behind You
30X36
|
W10-12
Skewed Crossing
36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W10-13P
No Gates or Lights
30X24
New 2009 MUTCD
Standard Sizes
|
|
|
|
|
|
|
|
W10-14P
Next Crossing
30X24
New 2009 MUTCD
Standard Sizes
|

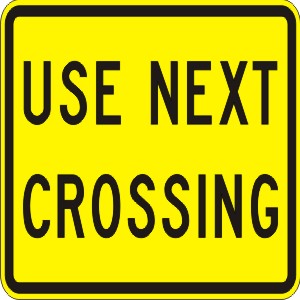

W10-14aP
Use Next Crossing
30X24
New 2009 MUTCD
Standard Sizes
|

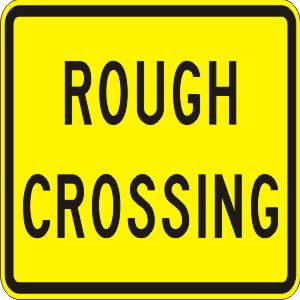

W10-15P
Rough Crossing
30X24
New 2009 MUTCD
Standard Sizes
|
W11-1
Bicycle Symbol
24X24, 30X30
36X36, 48X48
* Should use FYG
Sheeting
|
W11-1P
BICYCLE CROSSING
(Plaque)
24X18
* Should use FYG
sheeting
|
W11-1P
BICYCLE XING
(Plaque)
24X18
* Should use FYG
Sheeting
|
|
|
|
|
|
|
|
W11-2
Pedestrian Symbol
24X24, 30X30
36X36, 48X48
* Should use FYG
Sheeting
|
W11-2P
PEDESTRIAN
CROSSING (Plaque)
24X18
* Should use FYG
Sheeting
|
W11-2P
PED XING
(Plaque)
24X18
* Should use FYG
Sheeting
|
W11-3
Deer Symbol
24X24, 30X30
36X36, 48X48
|
W11-3P
DEER CROSSING
(Plaque)
24X18
|
W11-3P
DEER XING
(Plaque)
24X18
|
|
|
|
|
|
|
|
W11-4
Cattle Symbol
24X24, 30X30
36X36, 48X48
|
W11-4P
CATTLE CROSSING
(Plaque)
24X18
|
W11-4P
CATTLE XING
(Plaque)
24X18
|
W11-5
Farm Machinery
Symbol
24X24, 30X30
36X36, 48X48
|
W11-5a
Farm Machinery Traffic
Symbol
24X24, 30X30
36X36, 48X48
|
W11-5P
FARM MACHINERY
(Plaque)
24X18
|
|
|
|
|
|
|
|
W11-5P
FARM MACHINERY XING
(Plaque)
24X18
|
W11-5P
MACHINERY XING
(Plaque)
24X18
|
W11-6
Snowmobile Symbol
24X24. 30X30
36X36, 48X48
|
W11-6P
SNOWMOBILE
CROSSING
(Plaque)
24X18
|
W11-6P
SNOWMOBILE XING
(Plaque)
24X18
|
W11-7
Equestrian Symbol
24X24, 30X30
36X36, 48X48
|
|
|
|
|
|
|
|
W11-7P
EQUESTRIAN
CROSSING
(Plaque)
24X18
|
W11-7P
EQUESTRIAN XING
(Plaque)
24X18
|
W11-8
Fire Station Symbol
24X24, 30X30
36X36, 48X48
|
W11-8P
FIRE STATION
(Plaque)
24X18
|
W11-9
Handicapped Crossing
Symbol
30X30, 36X36, 48X48
New 2009 MUTCD
Standard Sizes
|
W11-10
Truck Symbol
24X24, 30X30
36X36, 48X48
|
|
|
|
|
|
|
|
W11-10P
TRUCK CROSSING
24X18
|
W11-10P
TRUCK XING
24X18
|
W11-11
Golf Cart
24X24, 30X30
36X36, 48X48
|
W11-12p
Emergency Signal
Ahead
36X30
New 2009 MUTCD
Standard Sizes
|
W11-15
ATV Crossing
24X24, 30X30
36X36, 48X48
|
W11-15P
ATV CROSSING
24X18
|
|
|
|
|
|
|
|
W11-15P
ATV XING
24X18
|
W11-16
Duck Crossing
Symbol
24X24, 30X30
36x36, 48X48
|
W11-16P
DUCK CROSSING
(Plaque)
24X18
|
W11-16P
DUCK XING
(Plaque)
24X18
|
W12-1
Double Arrow
30X30, 36X36
New 2009 MUTCD
Standard Sizes
|
W12-2
Low Clearance
30X30, 36X36
48X48
|
|
|
|
|
|
|
|
W12-2a
Low Clearance
(Plaque)
78X24
New 2009 MUTCD
Standard Sizes
|
W13-1P
XX M.P.H.
18X18, 24X24, 30X30
New 2009 MUTCD
Standard Sizes
|
W13-2
EXIT XX M.P.H.
24X30, 36X48
48X60
|
W13-3
RAMP XX M.P.H.
24X30, 36X48
48X60
|

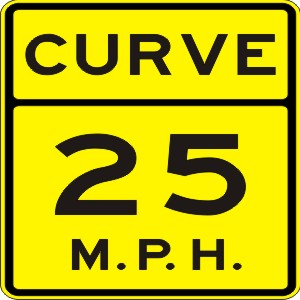

W13-5
Curve XX M.P.H.
24X30, 36X48
48X60
|
W14-1
DEAD END
24X24, 30X30
36X36, 48X48
|
|
|
|
|
|
|
|

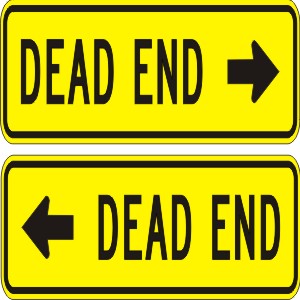

W14-1a
Dead End
(Plaque)
36X8
|
W14-2a
No Outlet
(Plaque)
36X8
|

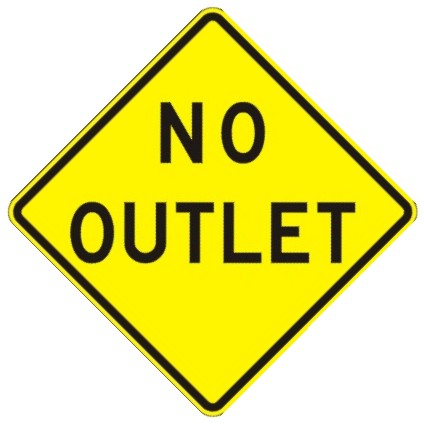

W14-2
NO OUTLET
24X24,30X30
36X36, 48X48
|
W14-3
NO PASSING ZONE
40X40X30
48X48X36
64X64X48
|
W14-4
LIMITED SIGHT
DISTANCE
24X24, 30X30
36X36, 48X48
|
W15-1
Playground Symbol
24X24, 30X30
36x36, 48X48
|
|
|
|
|
|
|
|
W16-1P
Share The Road
18X24, 24X30
|
W16-2P
500 Feet (2 lines)
24X18
|
W16-2aP
500 Feet (1 line)
24X12, 30X18
|

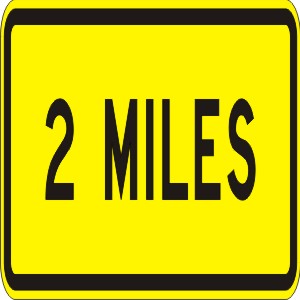

W16-3P
2 Miles (2 lines)
30X24
|
W16-3aP
2 Miles (1 line)
30X12
|
W16-4P
Next 500 FT (2 lines)
30X24
|
|
|
|
|
|
|
|
W16-5p
Arrow Plaque
24X18
|
W16-6pL
Arrow Plaque
24X18
|
W16-6pR
Arrow Plaque
24X18
|
W16-7pL
Arrow
24X12, 30X18
|
W16-7pR
Arrow
24X12, 30X18
|
W16-8P
Advisory Street Name
Plaque
24X12, 30X18
36X24, 48X36
|
|
|
|
|
|
|
|
W16-9p
Ahead Plaque
24X12, 30X18
|
W16-8a
Advance Street Name
Plaque
48X15
|
W16-10aP
Photo Enforced
24X18 36X30
48X36
|
W16-12p
Traffic Circles
Plaque
24X18
|
W16-13
When Flashing
24X18
|
W17-1
Speed Hump
24X24, 30X30
36X36, 48X48
|
|
|
|
|
|
|
|
W17-I100
Road Name Sign
VARX6, VARX9
|
W17-I101
Road Name Sign
(Two Lines)
30X12, 36X12
|
W18-1
No Traffic Signal
24X24, 30X30
36X36, 48X48
|
W25-1
Oncoming Traffic Has
Extended Green
24X30
|
W25-2
Oncoming Traffic May
Have Extended Green
24X30
|
OM1-1
18X18
|
|
|
|
|
|
|
|
OM1-2
18X18
|
OM1-3
18X18
|
OM-3R
Object Marker
12X36
|
OM-3L
Object Marker
12X36
|
OM4-3
18X18
|
|
