Barricades & Channelizers
|
|
| ||||||||
|
| ||||||||
| |||||||||||
| |||||||||||||||||||||||||||||||||
| ||||||||||||||
| |||||||||||
|
| |||||||||||
| |||||||||||
| |||||||||||
| ||||||||

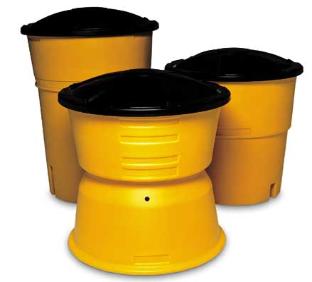

| Trafix Big Sandy Impact Attenuator Sand Barrels Now there is an Impact Attenuator that is easy to move and provides external verification of the barrels correct weight and sand. ~Different configurations are used to create all of the weights used in current standard array geometries (200, 400,700,1400 and 2100 lbs). ~Sand leaking is eliminated because each sand container is one piece-no edge seal. ~Shipping, storing, and installation is easy because there are no cone inserts |
|
| ||||||||
|
|
|
| |||||||||||
|
| Traffix Premier Panel |

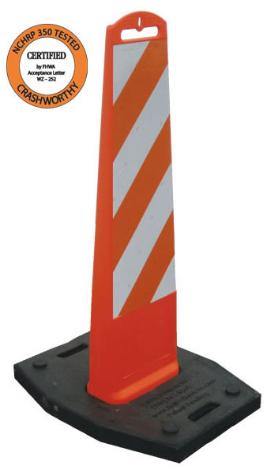

| Premier Panel is an all plastic and rubber vertical panel barricade that is designed to take repeated impacts with little or no damage to the premier panel or to the impacting vehicle. |
| Model 40236-W-HI20 White 8"x 36" refelctive sheeting and 20 lb recycled rubber base |
| Model 40229-O-HI30 Orange 8"x 29" trapezoid reflective sheeting and 30 lb recycled rubber base |
| Model 40224-O-HI20 White 8"x 24" reflective sheeting and 20 lb recycled rubber base |
| Model 40236-O-EG30-S Orange 8"x 36" reflective sheeting and SLOW message and 30 lb recycled rubber base. |

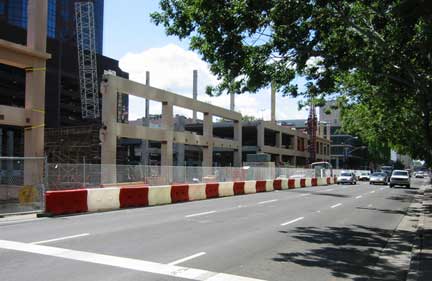

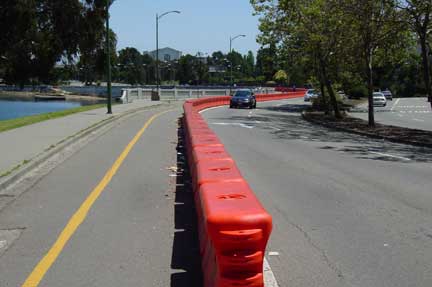

| TrafFix Water-Wall™ Tested and certified to meet the crashworthy requirements of NCHRP-350 • Durable Polyethylene plastic prevents cracking and breaking • Molded through forklift holes eliminates bowing when filled with water • Double wall knuckle design prevents breakage at hinge points • Hinge design allows for a 30-degree pivot between sections • 8" Fill hole speeds filling process, includes twist-lock plastic cap • Large tamper proof plastic threaded water release drain and plug at bottom corner • Includes one steel-connecting pin that allows sections to be locked together • Forklift and pallet jack through holes and recesses for easy movement • Additional colors available upon request • Will accept plastic or chain-link fence (with extended connector pins) Specifications Length 6' Height 32" Width 18" Weight (empty) 80 lbs Weight (filled w/water) 1,110 lbs Material Linear Low Density Polyethylene Color Orange/Red or White |

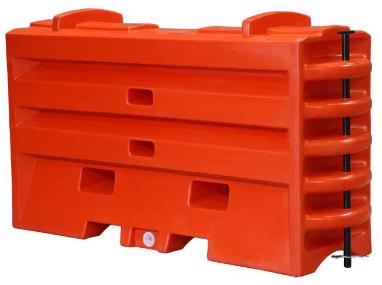

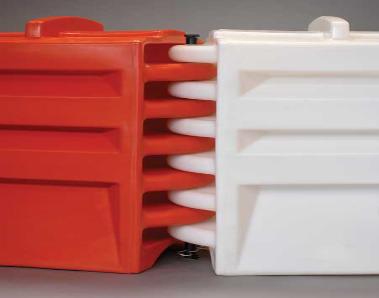

| TrafFix Sentry™Water-Cable Barrier Wall • The Sentry™ Water-Cable Barrier Wall has been tested and passed all TL-2 & TL-3 light weight 1,807lbs (820kg) and heavy weight 4,409 lbs (2,000kg) impacts at 45mph (70kph)and 62.5mph (100kph) impacts. • Sentry™, when filled with 242 gallons (9160 liters) of water weights approximately 2,000lbs (907kg), and is 42" (107cm) tall, 72" (183cm) long and 22.5" (57cm) wide. • Sentry's™ eleven interlocking knuckles on each end are positively linked together with a 1 1/8" (3cm) diameter galvanized hollow steel T-pin with a steel keeper at the bottom end. • Integrally molded into the Sentry™ are four 3/8" (9.5mm) diameter stranded steel cables, galvanized for corrosion resistance. These (4) cables prevent the impacting vehicle from penetrating the barrier wall. At each cable end is a corrosion resistant steel bushing. • The bushing is wrapped 360º around its O.D. with a loop of the 3/8" (9.5mm) diameter stranded steel cable. The bushing and cable assemblies are integrally molded into the connecting lugs, at four of the lug positions, at each end of the barrier wall. |
