24" Stop/Slow Paddle

    Available in diamond grade sheeting on .040 aluminum with 81"
    two piece PVC handle. Each component also available separately.

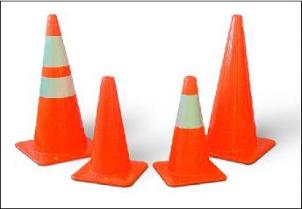

    Traffic Cones

    18" and 28" fluorescent orange PVC cones
    available with reflective collars at your
    request. Call for details on other sizes and
    accessories available such as cone lights
    and clip-on signs.

Cones | Paddles | Posts
24 inch slow paddle sign
24 inch stop sign
Traffic Cones

    Round Posts

    2 3/8" round galvanized pipe
    available in 10' or 12' lengths in thin
    or thick wall.
Round Posts
    Square Posts

    Galvanized square tubing available
    in 12 and 14 gauge thickness and
    various lengths.

    Also available (not pictured): Qwik
    punch hot dipped finish square
    posts with "knock out" holes. Only
    available in 14 gauge.

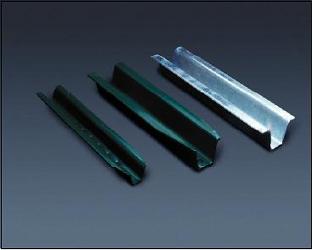

    Steel U-Channel and Delineator Posts

    U-Channel available in 2# or 3# per foot;
    galvanized or green finish in a variety of
    lengths.

    Delineator posts are 1.12# per foot in 7'
    length available in green or galvanized finish.

    All posts are tapered at one end to ease
    installation.

    Drive caps available for manual or power tools.

Steel U-Channel and Delineator Posts

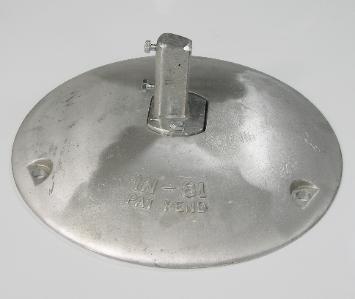

    IN81 Sign Pedestal Base & Replacement Stub

    15" aluminum sign pedestal. Two sided replaceable stub for U-Channel, Round, or Square posts.

Square Anchor

All square posts require an
anchor which is 1/4" larger in
diameter to create a break-away
system.
Home   |   Signs   |   Sign Brackets   |   Rental Equipment   |   Hardware/Banding Materials   |   Barricades   |   Cones/Paddles/Posts   |  Flags/Stencils  | Order   |   Contact Us
Contact Our Sales Office
Square Posts

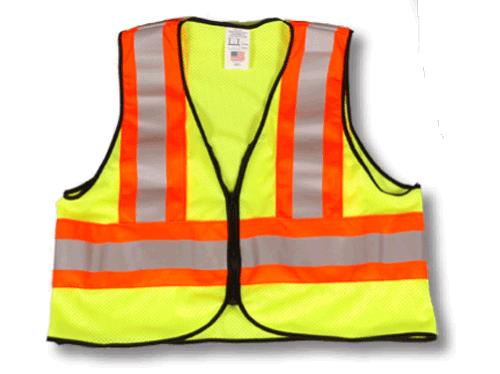

Safety Vest

Class 2 vest is 100%
mesh polyester in a lime
green color. Available in
L-XXL. Other sizes may
be available for custom
order.
Safety Vest
Portable Sign stand

Portable Sign Stand

Available for a variety of sign
shapes and sizes. Painted white
steel legs fold flat for easy
storage.

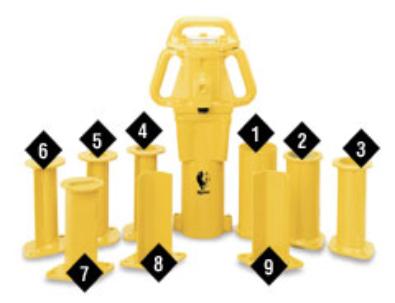

Rhino PD-55 Post Driver and Chuck Adapters

The PD-55 is easily operated by one man and is the perfect choice for driving
ground rods, delineator posts and various types of steel posts.



Model and/or                         Specifications
Part Number

PD-55070013              Medium Duty Post Driver with a 3 7/8" (98.4 mm) I.D.
                                   Master Chuck, uses 42 CFM (1.19 m3/min) @ 90 psi
                                   (6.4 kg/cm2). Approx. Wt. 54.6 lbs (24.8 kg)


1    070609                         3 1/2" (88.9 mm) I.D. Chuck Adapter

2    070610                         3" (76.2 mm) I.D. Chuck Adapter

3    070611                         2 1/2" (63.5 mm) I.D. Chuck Adapter

4    070612                         2" (50.8 mm) I.D. Chuck Adapter

5    070613                         1 1/2" (38.1 mm) I.D. Chuck Adapter

6    070614                         1" (25.4 mm) I.D. Chuck Adapter

7    070617                         Channel Post Chuck Adapter - 1.2 to 1.5 lbs/ft Posts

8    070618                         Channel Post Chuck Adapter - 2 to 2.75 lbs/ft Posts

9    070619                         Channel Post Chuck Adapter - 3 to 4 lbs/ft Posts

10  070615                         2" (50.8 mm) I.D. Heavy Chuck Adapter (not shown)
Illus.     Part                             PD-55 Specifications
No.
       No.                       All drivers are equipped with the exclusive
                                                           Rhino Alloy, Double Valve Piston

1            070013         PD-55 Medium Duty Post Driver with a 3 7/8"
(98.4                                    mm) I.D.Master Chuck, uses 42 CFM
(1.19
                             m3/min) @ 90 psi (6.4kg/cm2). Approx. Wt. 54.6
                             lbs (24.8 kg)
2            070609         3 1/2" (88.9 mm) I.D. Chuck Adapter*
        070610         3" (76.2 mm) I.D. Chuck Adapter*
        070611         2 1/2" (63.5 mm) I.D. Chuck Adapter*
        070612         2" (50.8 mm) I.D. Chuck Adapter*
        070613         1 1/2" (38.1 mm) I.D. Chuck Adapter*
        070614         1" (25.4 mm) I.D. Chuck Adapter*
3            070617         Channel Post Chuck Adapter - 1.2 to 1.5 lbs/ft
                             Posts*
        070618         Channel Post Chuck Adapter - 2 to 2.75 lbs/ft
                             Posts*
        070619         Channel Post Chuck Adapter - 3 to 4 lbs/ft Posts*
4            600000         Throttle Valve Kit with 2' (61 cm) Hose Assembly,
2                                    Couplers,1 Safety Clip.
        605006         3/4" (19 mm) Extra Hose (Only Available to Extend
                             Hose Assembly to Desired Length)
5            607000         3/4" (19 mm) Hose Assembly (Order Length
                             Needed)
6            225001         Carrier for Filter-Regulator-Lubricator
7            601128         Filter-Regulator-Lubricator (Used with all Post
                             Drivers for Operator Safety & Post Driver
                             Protection)
8            606600         Air Line Coupler (Optional on F-R-L)
9            606601         Coupler Safety Clip (Optional on F-R-L)
10          230401         Nipple (Optional on F-R-L)
11          100047         Air Hose Reel with 100 ft (30.5 m), 3/4" (19 mm)
                             Air Hose Included
        100048        100 ft (30.5 m), 3/4" (19 mm) Air Hose Assembly
        100295        Air Hose Reel Only
12          995051        Pair/Anti-Vibration Gloves - Size Small
        995052        Pair/Anti-Vibration Gloves - Size Medium
        995053        Pair/Anti-Vibration Gloves - Size Large
        995054        Pair/Anti-Vibration Gloves - Size X-Large
        995055        Pair/Anti-Vibration Gloves - Size XX-Large
13          517702        Compression Washer
14          500178        Cap Screw

*Note: Includes Necessary Cap Screws and Compression Washers.

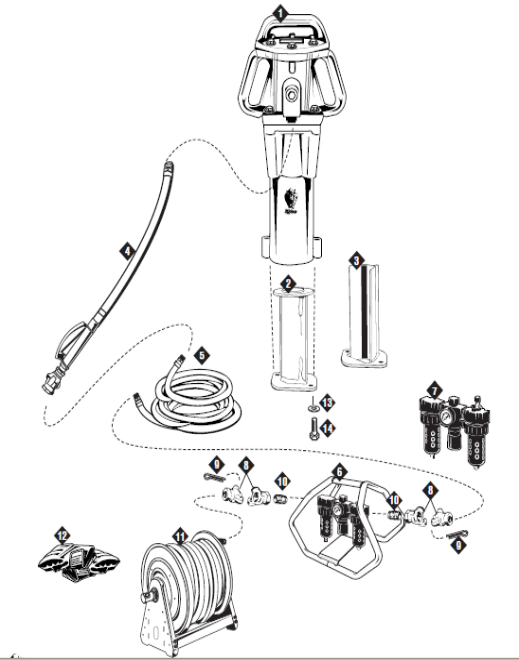

PD-55 Air Operated Post
Driver & Accessories List
